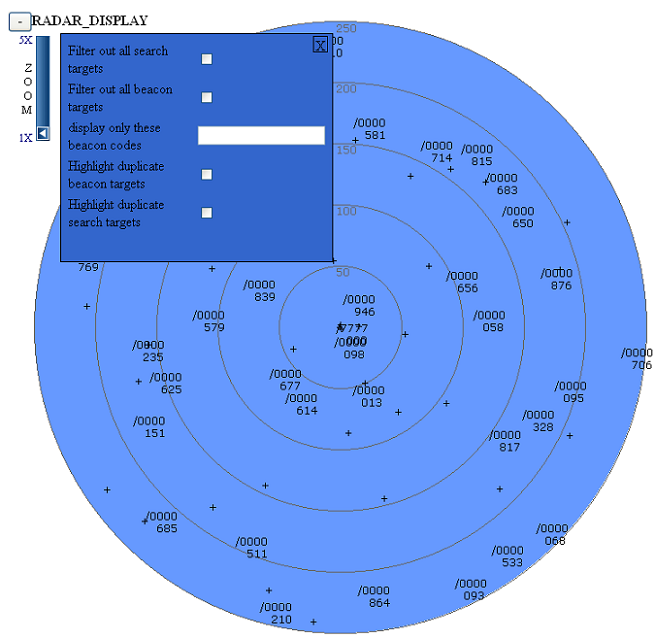

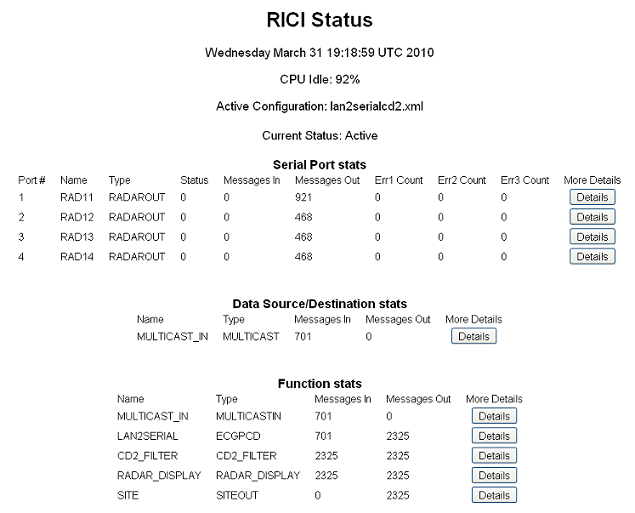

System Interface Characteristics

Serial Port Controls	Ethernet	Protocols	Message Format	Clock Sources
RS-232 (V.28) RS-422 X.21 (V.11) V.35 (V.35 & V.28) EIA-530A (V.10 & V.11) RS-449/V.36 (V.10 & V.11) RS-485	10BASE-T 100BASE-T IEEE-802.3	Synchronous Asynchronous HDLC/SDLC Bi-Sync Mono-Sync TCP/IP UDP/IP	ASTERIX CD-2 / ASR-9/11 Radar Mode 4 / Mode S MAR / TPS75 / ARTS AIRCAT-500 SGF ADS-B Custom	DCE DTE Split Clock Note: RICI can generate and/or receive clock on each port





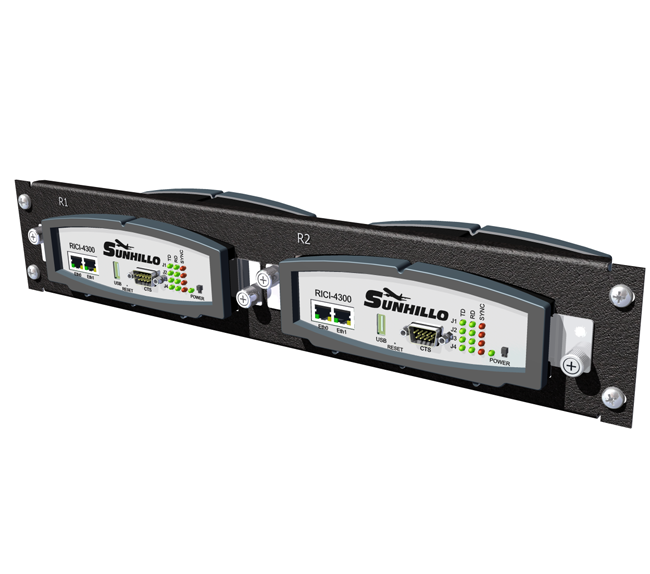

Mechanical

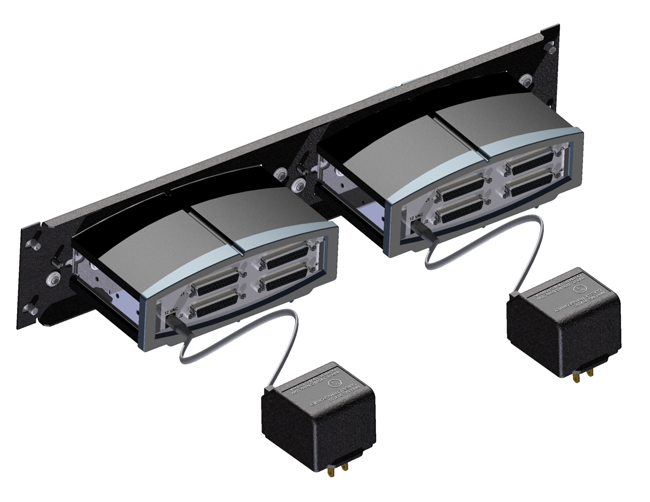

Specifications	RICI Unit	Dual RICI Panel		Power Requirements
Height	3in./76mm	3.5in./89mm		North American 110/120VAC
Width	7in./177mm	19in./483mm		European 220/240VAC
Depth	5in./127mm	5in./127mm		UK 220/240VAC





Environmental Standards

Description	Specifications	Standard Achieved
Low Temperature Operating	0° F (-17°C), uncontrolled humidity	MIL-STD-810F - Method 502.4
High Temperature Operating	100°F (38°C), uncontrolled humidity	MIL-STD-810F - Method 501.4
Low Temperature Storage	Constant: -58°F (-50°C)	MIL-STD-810F - Method 502.4
High Temperature Storage	Cyclic: 115° F to 133° F (42° C to 56° C)	MIL-STD-810F - Method 501.4
Humidity Operating	55° F to 85° F, 85% Humidity (12° C to 30° C, 85% Humidity)	MIL-STD-810F - Method 507.4
Humidity Non-Operating	86° F to 133° F, 95% Humidity (30° C to 56° C, 95% Humidity)	MIL-STD-810F - Method 507.4
Altitude Operating	Low Pressure (Altitude) Operating/Air Carriage -200 to +10,000 feet	MIL-STD-810F - Method 500.4
Altitude Non-Operating	Low Pressure (Altitude) Storage/Air Transport +50,000 feet	MIL-STD-810F - Method 500.4
EMC Compliance	Federal Communications Commission (FCC)	Part 15, Class B
Safety Compliance	Underwriters Laboratories	(UL) 60950-1
Environmental Compliance	RoHS (Restriction of Hazardous Substance )	EU Directive 2002/95/EC
