Product Descriptions
- Supports up to 32-serial ports
- LAN to LAN protocol conversion
- LAN-Serial protocol conversion
- Serial-LAN protocol conversion
- Stand-alone configuration
- Built-In Radar Display
- Radar Processing Statistics
- SNMP support for network mgt
- Modular and scalable
- Hot-swappable interface cards
- Multiple message formats
- Redundant power supplies
- Front Panel Monitoring
- TCP/IP and UDP/IP protocols
Surveillance Gateway Unit - SGU
-
SGU Circuit Card Assembly
(SGU-CCA)
SGU Active Receptor
(SGU-AR) - Front View
- SGU Active Receptor
(SGU-AR) - Rear view
- LAN to LAN conversion/filtering
- Stand-alone Configuration
- Built-In Radar Display
- Radar Processing Statistics
- Standard/Custom messages
- 1U Rack Mountable Chassis
- 10Base-T/100/1000Base-TX
- Dual port Ethernet (standard)
- Optional 6-port Ethernet
- Redundant Hard Disk option
- Front Panel Indicators
- TCP/IP and UDP/IP protocols
- 100/240VAC power supply
- LAN to LAN filtering
- LAN to LAN data formatting
- LAN to LAN protocol conversion
- LAN-Serial protocol conversion
- Serial-LAN protocol conversion
- Stand-alone configuration
- Single Configuration Point
- Built-In Radar Display
- Radar Processing Statistics
- 10Base-T/100/1000Base-TX
- Hot-swappable interface cards
- Redundant Power Supplies
- Redundant Hard Disk option
- Front Panel Indicators
- TCP/IP and UDP/IP protocols
Surveillance Gateway Processor - SGP
-
SGP rear view
Surveillance Gateway System
-SGS
Technical Specifications
| Serial Port Controls | Ethernet | Protocols | Message Format | Clock Sources |
| RS-232 (V.28) RS-422 X.21 (V.11) V.35 (V.35 & V.28) EIA-530A (V.10 & V.11) RS-449/V.36 (V.10 & V.11) RS-485 |
10BASE-T 100BASE-T IEEE-802.3 |
Synchronous Asynchronous HDLC/SDLC Bi-Sync Mono-Sync TCP/IP UDP/IP |
ASTERIX CD-2 / ASR-9/11 Radar Mode 4 / Mode S MAR / TPS75 / ARTS AIRCAT-500 SGF ADS-B Custom |
DCE Note: |
| Specifications | SGU Chassis | SGU-AR | Power Distribution Panel | Power Supply |
| Height | 7in./178mm | 7in./178mm | 1.75in./45mm | 3.50in./89mm |
| Width | 19in./483mm | 4.25in./108mm | 19in./483mm | 19in./483mm |
| Depth | 13in./330mm | 13in./330mm | 1.5in./380mm | 4.25in./112mm |
| Description | Specifications | Standard Achieved |
| Low Temperature Operating |
32°F (0°C), uncontrolled humidity | MIL-STD-810F – Method 502.4 |
| High Temperature Operating |
100°F (38°C), uncontrolled humidity | MIL-STD-810F – Method 501.4 |
| Low Temperature Storage |
Constant: -58°F (-50°C) | MIL-STD-810F – Method 502.4 |
| High Temperature Storage |
Cyclic: 115°F to 133°F (42°C to 56°C) | MIL-STD-810F – Method 501.4 |
| Humidity Operating |
55°F to 85°F, 85% Humidity (12°C to 30°C, 85% Humidity) | MIL-STD-810F – Method 507.4 |
| Humidity Non-Operating |
86°F to 133°F, 95% Humidity (30°C to 56°C, 95% Humidity) | MIL-STD-810F – Method 507.4 |
| Altitude Operating |
Low Pressure (Altitude) Operating/Air Carriage -200 to +10,000 feet | MIL-STD-810F – Method 500.4 |
| Altitude Non-Operating |
Low Pressure (Altitude) Storage/Air Transport +50,000 feet | MIL-STD-810F – Method 500.4 |
| EMC Compliance |
Federal Communications Commission (FCC) | Part 15, Class B |
| Safety Compliance |
Underwriters Laboratories | (UL) 60950-1 |
| Environmental Compliance |
RoHS (Restriction of Hazardous Substance ) | EU Directive 2002/95/EC |

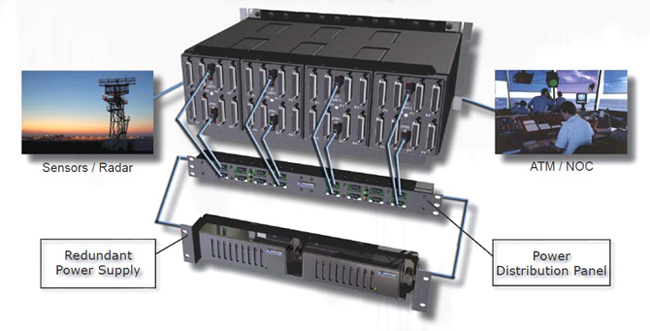

SGU System Architecture
Surveillance Gateway Processor - SGP
| Ethernet | Message Format |
10BASE-T Gigabit Ethernet |
ASTERIX CD-2 / ASR-9/11 Radar Mode 4 / Mode S MAR / TPS75 / ARTS AIRCAT-500 SGF ADS-B Custom |
| Specifications | SGP Chassis | AC Power Supply | |
| Height | 1.7in./43mm |
100 - 240VAC 60 - 50Hz 5 Amperes |
|
| Width | 17.2in./437mm | ||
| Depth | 19.8in./503mm | ||
| Weight | 31 lbs/14.1kg |
| Description | Specifications | Standard Achieved |
Operating Temperature Range |
50°F to 95°F (10° to 35°C ) | MIL-STD-810F – Method 502.4 |
Non-Operating Temperature Range |
-40°F to 158°F (-40° to 70°C ) | MIL-STD-810F – Method 501.4 |
Operating Humidity Range |
8 to 90%, non-condensing | MIL-STD-810F – Method 502.4 |
Non-Operating Humidity Range |
5 to 95%, non-condensing | MIL-STD-810F – Method 501.4 |
EMC Compliance |
Federal Communications Commission (FCC) | Part 15, Class B / EN 60950/IEC |
Conformity Compliance |
EC-Declaration of Conformity | CE Mark |
Safety Compliance |
Underwriters Laboratories | (UL) 60950-1 / (CUL) listed |
Environmental Compliance |
RoHS (Restriction of Hazardous Substance ) | EU Directive 2002/95/EC |

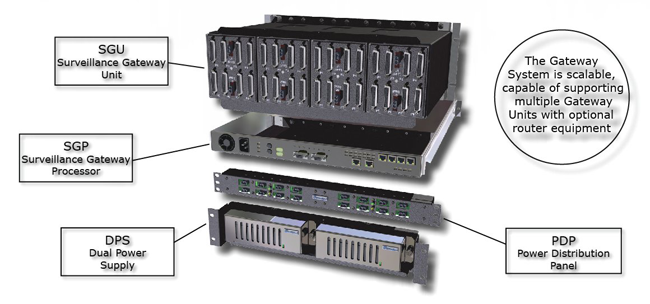

SGS Architecture
