SureLine® Software Suite is the backbone of Sunhillo Corporation’s surveillance gateway products (RICI, Longport, Brigantine SGP, Ventnor, and Margate II ADS-B) and is the same codebase that was historically referred to as “COTS”. It provides a wide range of functionality including conversion, translation and other transforms that allow for bridging dissimilar networks, analyzing data and connecting surveillance sources to air-traffic automation systems.

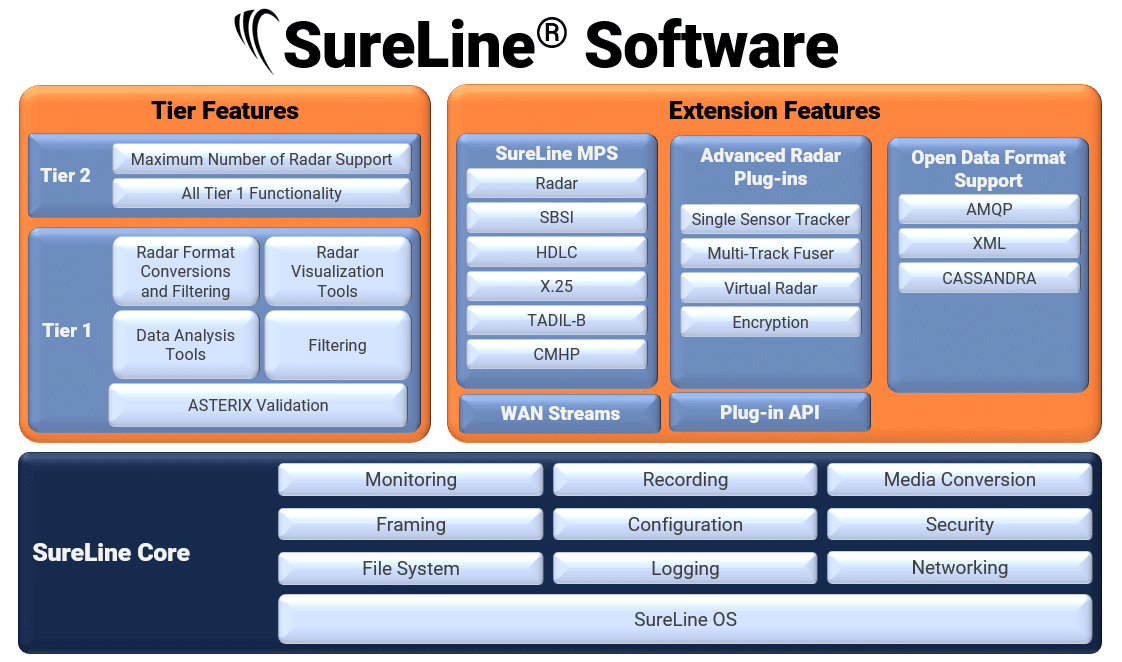

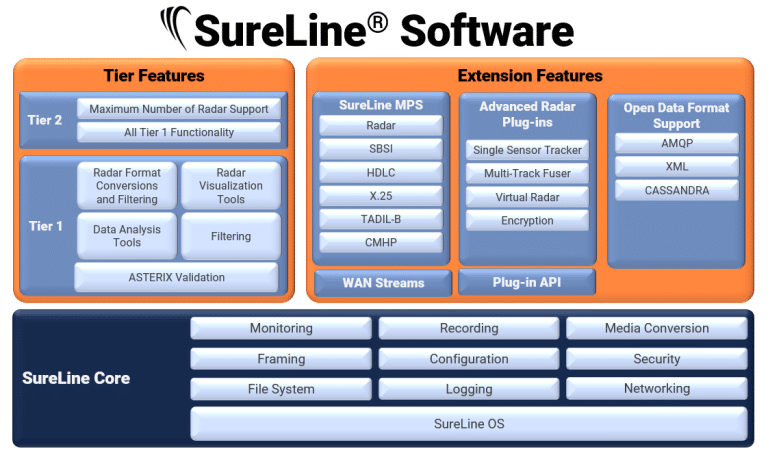

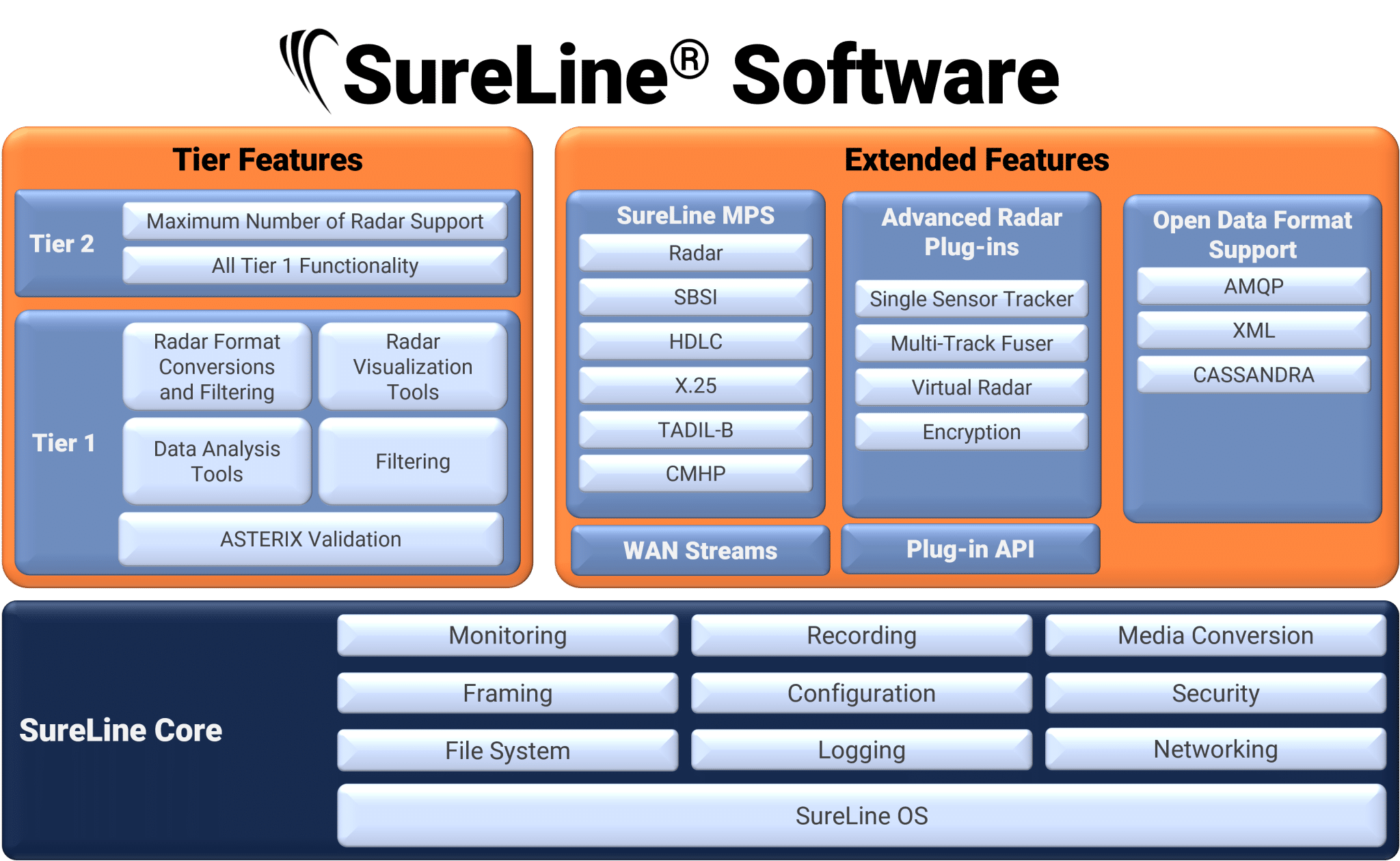

SureLine Software is designed with an expandable layered architecture. The base layer on all SureLine products is “SureLine Core”. The proven architecture of SureLine Core and associated secure GUI allows easy configuration of complex data flows to route data between different frame formats and media. For applications that require custom integration, Core contains the MPS API connections. The MPS API connection provides a wide range of WAN radar protocols to a user developed application through the MPS development software kit.
Features can be added to the Core to open additional functionality. Basic features are included in our SureLine Tier 1 and 2 licenses while more advanced features can be added individually.
The Tier mechanism extends SureLine Core to include a wealth of radar format conversions, with more than 400 possible conversion combinations, ASTERIX validation, filtering capabilities and visualizations. Tier 1 and 2, support opens the door for other advanced features that can be loaded or licensed individually such as radar trackers, fusers and advanced MPS API protocols.
Through the web-enabled graphical user interface (GUI), SureLine Core offers a seamless user interface experience across all associated platforms reducing training requirements.
SureLine is constantly evolving to meet the demands of the ever-rising security bar. The security features built in to SureLine are derived from the ISO/IEC 15408 Common Criteria (CC) Network Device Protection Profile (NDPP).
SureLine contains advanced features that allow it to further process surveillance data as it is transported. These include surveillance data format conversion, filtering, and frame headers. See the sections below for further details of these features along with any requirements for additional licenses.
Do you have surveillance data in one format but need it in another? SureLine has got you covered.
With the addition of one or more licenses, SureLine has the capability to convert from one radar format to another. Conversion requires a SureLine Tier1 license. Any additional licenses required will be identified in the lists below.
From the lists below, expand the input data format to see the output formats to which it can be converted. If the conversion you require is not listed then please contact our Sales or Support teams to see if it is available or can be created.
Do you have too much surveillance data? Let SureLine filter out the data you don’t need.
SureLine, with the addition of one or more licenses, has a multitude of filtering capabilities to remove the data you don’t need. Filtering requires a SureLine Tier1 license. Any additional licenses required will be identified in the lists below.
Do you have surveillance data with one type of frame header but need a different one? SureLine is hear to help.
The following Framers/Unframers are supported for the listed surveillance formats. Any licenses required are detailed below.
Maximum Messages per second when performing a LAN-to-LAN distribution with no other processing.
Configuration: UDP – 1 input & 1 output
| Product | Maximum Throughput |
|---|---|
| Margate II ADS-B | 1,300 pps |
| RICI 4500 / Original Longport and RICI 5000 | 2,100 pps |
| Ventnor / Tech Refreshed Longport and RICI 5000 | 3,500 pps |
| Brigantine-SGP | 32,000 pps |
Maximum Messages per second when performing a LAN-to-LAN distribution with a generic conversion in and out.
Configuration: UDP CAT021 v2.4 to CAT021 v2.4 – 1 input & 1 output
| Product | Maximum Throughput |
|---|---|
| Margate II ADS-B | 450 pps |
| RICI 4500 / Original Longport and RICI 5000 | 450 pps |
| Ventnor / Tech Refreshed Longport and RICI 5000 | 1,125 pps |
| Brigantine-SGP | 5,500 pps |
Providing surveillance data distribution and conversion solutions to the FAA, DOD, and civil aviation authorities worldwide since 1991
Select from the menu below which protocol you would like to convert. All conversions listed reflect a required Tier 1 License and any additional licenses required are listed below.
The following conversions require a Virtual Radar license, in addition to the SureLine Tier 1 license, which converts track data down to plot data for interoperability:
* ASTERIX CAT021 supported subtypes: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
The following conversions may require a Single-Sensor Tracker Plug-In license, in addition to the SureLine Tier 1 license, if the input data does not contain track information (SGP Only)
* ASTERIX CAT021 supported sub-types: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
The following conversions may require a Single Sensor Tracker Plug-In license, in addition to the SureLine Tier 1 license, if the input data does not contain track information (SGP Only)
* ASTERIX CAT021 supported sub-types: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
The following conversions may require a Single Sensor Tracker Plug-In license, in addition to the SureLine Tier 1 license, if the input data does not contain track information (SGP Only)
* ASTERIX CAT021 supported sub-types: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
The following conversions may require a Single Sensor Tracker Plug-In license, in addition to the SureLine Tier 1 license, if the input data does not contain track information (SGP Only)
* ASTERIX CAT021 supported sub-types: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
The following conversions may require a Single Sensor Tracker Plug-In license, in addition to the SureLine Tier 1 license, if the input data does not contain track information (SGP Only)
* ASTERIX CAT021 supported sub-types: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
**** ASTERIX CAT001/002 Variants Supported: Eurocontrol, Colombia, TPS77, Australia
The following conversions require a Virtual Radar license, in addition to the SureLine Tier 1 license, which converts track data down to plot data for interoperability:
* ASTERIX CAT021 supported subtypes: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
The following conversions require a Virtual Radar license, in addition to the Tier 1 license, which converts track data down to plot data for interoperability:
* ASTERIX CAT021 supported subtypes: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
The following conversions may require a Single Sensor Tracker Plug-In license, in addition to the SureLine Tier 1 license, if the input data does not contain track information (SGP Only)
* ASTERIX CAT021 supported sub-types: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
***** ASTERIX CAT034/048 Variants Supported: Eurocontrol, TPS78 Secure IFF, Australia
The following conversions require a Virtual Radar license, in addition to the Tier 1 license, which converts track data down to plot data for interoperability:
* ASTERIX CAT021 supported subtypes: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
With the addition of the ASTERIX CAT159 plug-in, can be converted to:
The following conversions may require a Single Sensor Tracker Plug-In license, in addition to the SureLine Tier 1 license, if the input data does not contain track information (SGP Only)
* ASTERIX CAT021 supported sub-types: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
***** ASTERIX CAT034/048 Variants Supported: Eurocontrol, TPS78 Secure IFF, Australia
The following conversions may require a Single Sensor Tracker Plug-In license, in addition to the SureLine Tier 1 license, if the input data does not contain track information (SGP Only)
* ASTERIX CAT021 supported sub-types: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
The following conversions may require a Single Sensor Tracker Plug-In license, in addition to the SureLine Tier 1 license, if the input data does not contain track information (SGP Only)
* ASTERIX CAT021 supported sub-types: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
The following conversions may require a Single Sensor Tracker Plug-In license, in addition to the SureLine Tier 1 license, if the input data does not contain track information (SGP Only)
* ASTERIX CAT021 supported sub-types: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
The following conversions may require a Single Sensor Tracker Plug-In license, in addition to the SureLine Tier 1 license, if the input data does not contain track information (SGP Only)
* ASTERIX CAT021 supported sub-types: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
The following conversions may require a Single Sensor Tracker Plug-In license, in addition to the SureLine Tier 1 license, if the input data does not contain track information (SGP Only)
* ASTERIX CAT021 supported sub-types: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
The following conversions may require a Single Sensor Tracker Plug-In license, in addition to the SureLine Tier 1 license, if the input data does not contain track information (SGP Only)
* ASTERIX CAT021 supported sub-types: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
The following conversions may require a Single Sensor Tracker Plug-In license, in addition to the SureLine Tier 1 license, if the input data does not contain track information (SGP Only)
* ASTERIX CAT021 supported sub-types: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
The following conversions may require a Single Sensor Tracker Plug-In license, in addition to the SureLine Tier 1 license, if the input data does not contain track information (SGP Only)
* ASTERIX CAT021 supported sub-types: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
With the addition of the TPS75 (9 bit) plug-in, can be converted to:
The following conversions may require a Single Sensor Tracker Plug-In license, in addition to the Tier 1 license, if the input data does not contain track information (SGP Only)
* ASTERIX CAT021 supported sub-types: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
Additional TFMD license required.
* ASTERIX CAT021 supported subtypes: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
The following conversions require a Virtual Radar license, in addition to the Tier 1 license, which converts track data down to plot data for interoperability:
* ASTERIX CAT021 supported subtypes: v.23, v.26, v2.1, v2.4 (limited to the confines of SureLine Generic data conversions)
** ASTERIX CAT023/033 supported sub-types: FAA v3 (limited to the confines of SureLine Generic data conversions)
The following conversions are available with a base SureLine license:
With the addition of a SureLine Tier 1 license, The following conversions are available:
With the addition of a SureLine Tier 2 license, The following conversions are available:
The following conversion plug-ins may be used:
Message filtering that can be applied to a variety of input message formats:
By defining a polygon of co-ordinates, users can filter data based on geographic area.
A SureLine Tier1 license is required for the SGF Framer and Unframer
SGF version support: SGF versions 1.1 full & reduced plus SGF version 2.0
Easily select filters like minimum and maximum range and altitude.
Convenient built in radar display to check your configuration display
Easily identify and configure your network ports
